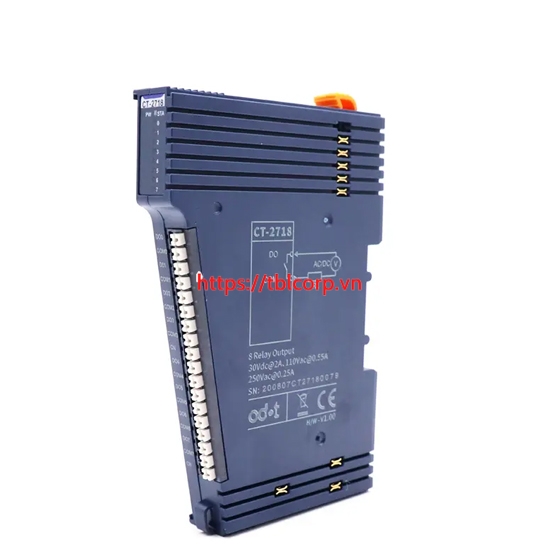

CT-2718 Relay ngõ ra 8 kênh 2A 30VDC 60W
This product has been delisted, please select CT-2738 as instead
Module features
◆ 8-channel relay normally on output
◆ 8 LED channel indicators
◆ Low on resistance (≤100mΩ)
◆ 250VAC/220VDC the max. switch voltage is 250VAC/220VDC
Technical Parameters
|
General Parameters
|
|
Power Consumption
|
Max.298mA@5.0VDC
|
|
Isolation
|
I/O to internal bus：coil isolation(1600VAC)
|
|
Field Power
|
Not used
|
|
Wiring
|
Max.: AWG 18
Min.: AWG 24
|
|
Installation
|
35mm DIN-Rail
|
|
Size
|
115*14*75mm
|
|
Weight
|
65g
|
|
Environment Specification
|
|
Operating Temperature of Vertical Installation
|
-35℃~70℃
|
|
Operating Temperature of Horizontal Installation
|
-35℃~60℃
|
|
Relative Humidity
|
5~ 95%RH (No Condensation)
|
|
Storage Temperature
|
-40℃~85℃
|
|
Storage Humidity
|
5~ 95%RH (No Condensation)
|
|
Manufacturing Test Temperature
|
-40℃~75℃
|
|
Ingress Protection Rating
|
IP20
|
|
Output Parameter
|
|
Channel Number
|
8 channel relay normally on output
|
|
LED Indicator
|
8 channel output LED Indicator
|
|
Max. Switching Current
|
1A
|
|
Max. Switching Voltage
|
30VDC
|
|
Max. Switching Power
|
30W
|
|
Contact Resistance
|
≤100mΩ
|
|
Output Delay
|
ON to OFF:Max.3ms
OFF to ON:Max.3ms
|
|
Mechanical Endurance
|
1x108
|
|
Electricity Endurance
|
1x105
|
|
Vibration
|
10Hz~55Hz 3.3mm Double vibration amplitude
|
|
Impact
|
Stability：735m/s2
Strength：980m/s2
|
|
Load type
|
Resistive, Pilot Duty
|
