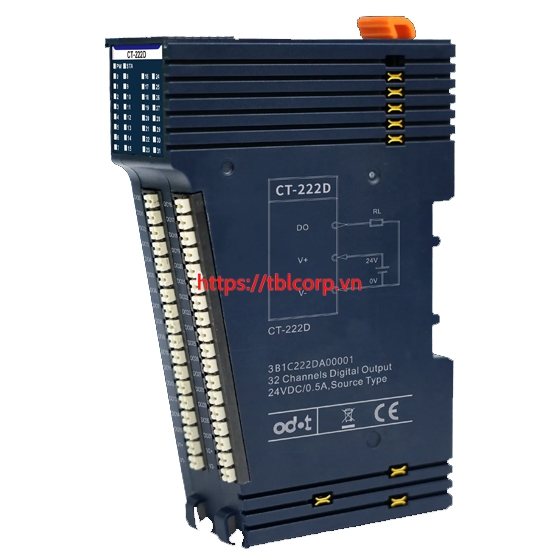

CT-222D Module kỹ thuật số ngõ ra 32 kênh 24VDC Sink ODOT
◆ The module supports 32 channels digital output; the output voltage is 24VDC and the output high level is valid.
◆ Module can drive field equipment. (relay, solenoid valve, etc.)
◆ The internal bus of the module and field output are using opto-coupler.
◆ The module carries 32 digital output channel LED indicator light.
◆ The module has the functions of thermal shutdown and overcurrent protection.
◆The module supports short circuit protection and overload protection.
General parameters
| Power |
Max.64mA@5.0Vdc |
| Isolation |
I/O to internal bus: opto-couple isolation (3KVrms) |
| Field Power |
Nominal: 24Vdc, Range: 19.2~28.8Vdc |
| Wiring |
I/O Wiring： Max.1.0mm²(AWG 17) |
| Mounting Type |
35mmDIN-Rail |
| Size |
115*14*75mm |
| Weight |
65g |
Environment Specification
| Operational Temperature |
-40~85℃ |
| Operational Humidity |
5%~95% RH(No Condensation) |
| Protection Class |
IP20 |
Output Parameters
| M/S/F:Channel Number |
8 Channels |
| M/S/F:LED Indicator |
8 channels output LED indicator |
| M/S:Rated Current |
Single channel output：Max. 1000mASimultaneously output: Max.500mA |
| M/S: Leak Current |
Max. value：3uA |
| M/S/Output Impedance |
< 200mΩ |
| M/S/Output Delay |
OFF to ON:Max.50us ON to OFF:Max.300us |
| M/S/Protection Function |
Over temperature shutdown: typical 135℃Overcurrent protection: typical value 3A Short-circuit protection: Supported |
