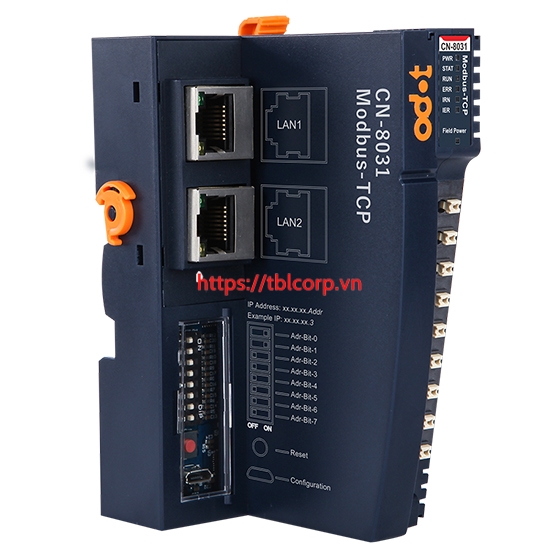

Module IO Modbus TCP/IP CN-8031

System Power

Nominal:24Vdc

Range: 19.2-28.8Vdc

Reverse Protection: YES

Power Consumption

50mA@24Vdc

Current Output

Max. 2.5A@5VDC

Isolation

System Power to Field Power Isolation

Field Power

Nominal:24Vdc

Range

19.2-28.8Vdc

Field Power Contact

Max. 8A

Expansion Module

32 Slots

Wiring

Max.1.5mm²(AWG 16)

Mounting Type

35mm DIN-Rail

Size

115*51.5*75mm

Weight

130g

Operation Temperature

 -35~70℃

Operation Humidity

 5%-95% (No Condensation)

Protection Class

 IP20

Protocol

 Modbus-TCP

Process Data Area

 Sum of input and output:8192 Byte

Diagnostic Function

 Supported

Modbus Data Storage Area

0xxxx area (Coil)

 8192 Bit

1xxxx area (Discrete input)

 8192 Bit

3xxxx area (Input register)

 2048 Word

4xxxx area (Holding register)

 2048 Word

3xxxx area (System diagnostics - state input)

 105 Word

4xxxx area (System diagnostics - control output)

 1 Word Number of TCP:5 Clients

TCP Keepalive

 YES

Modbus Watchdog

 YES (Default:Enable, 30 Seconds)

Function Code

 01/02/03/04/05/06/15/16/23

Network Interface

 RJ45x2

Speed

 10/100Mbps, MDI/MIDX, Full-Duplex

Distance

 100m

IP Address

 DIP switch set or IO-Config software set
