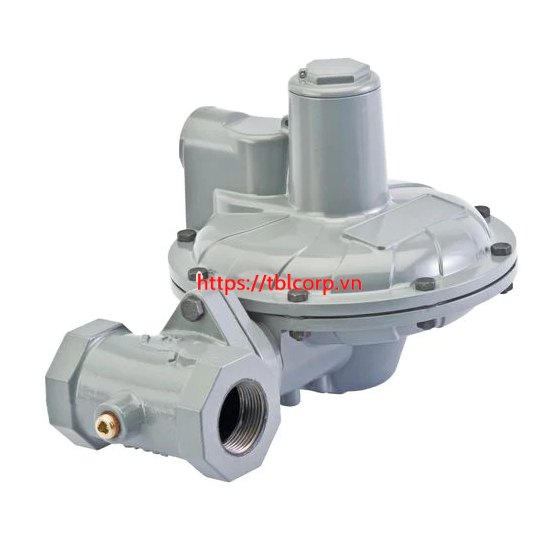

CSB400 Series regulators are typically installed on industrial and commercial applications. See Table 1
for Available Configurations. Low, Medium and High outlet pressure constructions are available via Types CSB400, CSB420 and CSB450, respectively, that provide outlet setpoints ranging from 17 mbar to 3.0 bar / 7 in. w.c. to 43.5 psig. Also available are upstream monitoring configurations such as Types CSB410 and CSB430, which are installed upstream of the primary regulator to provide overpressure protection.
Types that include an “F” refer to the cold temperature construction of the base Type number. For example, the Type CSB404F provides a cold temperature construction of the Type CSB404. Refer to the Operating Temperature section found on the following page for additional information regarding temperature capabilities and refer to Table 7 for inlet pressure limitations. For types that include an “F”, refer to the base type number for general information such as Principles of Operation, Maintenance instructions, Warnings and Cautionary notes.
PED Information
| TYPE |
DESCRIPTION |
PED CATEGORY |
FLUID GROUP |
| CSB400, CSB400F, CSB410, CSB420, CSB420F, CSB430 and CSB450 |
Base regulator |
I |
Groups 1 and 2 according to PED 2014/68/EU, 1st and 2nd family gas according to EN 437 or other gases (compressed air, nitrogen).
The gas must be non-corrosive, clean (filtration on inlet side necessary) and dry. |
| CSB404, CSB404F, CSB414, CSB424, CSB424F, CSB434 and CSB454 |
Regulator with Slam-Shut Module |
IV |
| European eN Reference Standards |
EN 334, EN 14382 |
