Fisher CS800 Series Regulators

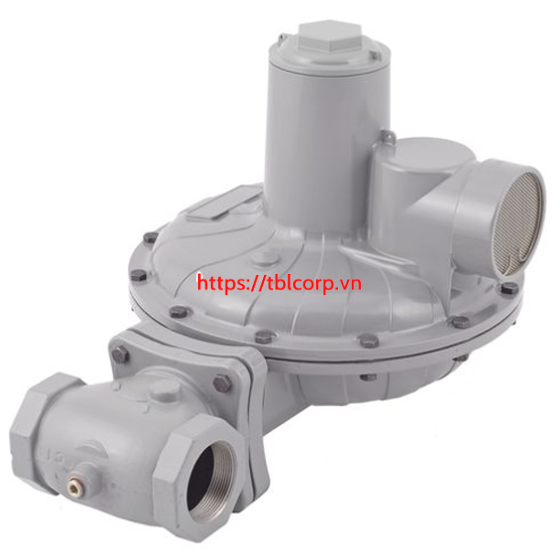

Fisher CS800 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. This flexibility is provided by the numerous body sizes and end connections, outlet pressure settings, orifice sizes, as well as the option for internal or external pressure registration. In addition to application flexibility, the CS800 Series offers multiple overpressure protection options to meet your demands on application requirements.

Body Sizes and End Connection Styles

1-1/4, 1-1/2, and 2 NPT
Rp 2
NPS 2 / DN 50 / CL125FF / CL150 FF / CL150 RF
NPS 2 / DN 50 / PN 10/16 / PN16

Maximum Allowable Inlet Pressure

Emergency: 175 psig / 12.1 bar

Maximum Outlet Control Pressure

Emergency (Casing): 15 psig / 1.0 bar
To Avoid Internal Parts Damage: 3 psig / 0.21 bar differential above outlet pressure setting

Orifice Sizes

1/4-inch / 6.4 mm
3/8-inch / 9.5 mm
1/2-inch / 13 mm
5/8-inch / 16 mm
3/4-inch / 19 mm
7/8-inch / 22 mm
1-inch / 25 mm
1-3/8-inches / 35 mm

Hydrogen (H2)

Up to 25% Hydrogen blend by volume
100% Hydrogen ready

Outlet Pressure Range

3.5-inches w.c. to 10 psig / 9 to 0.69 bar

Pressure Registration

Internal or External

External Registration Connection

3/4 NPT

Temperature Capabilities

-20 to 150°F / -30 to 66°C

Capacity

Up to 36 270 SCFH / 974 Nm3/h

Approximate Weights

Threaded:
CS800/820:25#/11kg
CS803/823:34#/16kg
CS805/825:26#/12kg
CS806/826:26#/12kg
HP:
CS85x, add 2#/0.91kg to Types above
Flanged:
Add 11#/5kg to weights above
