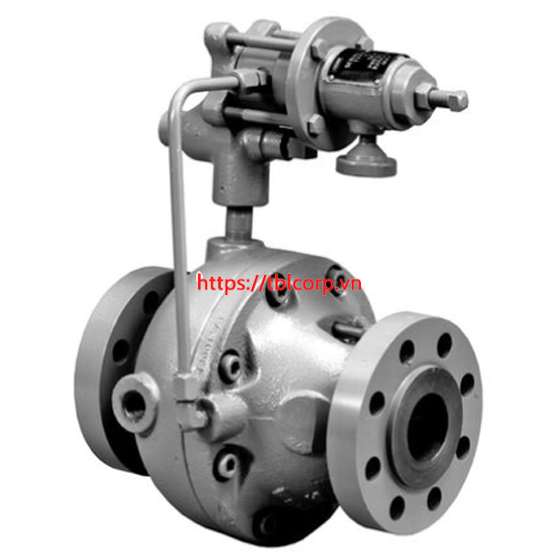

Fisher Type 310A Pressure Reducing Regulator

Type 310A fuel pressure regulator is used for high-pressure applications which require fast response such as fuel gas supply to a gas turbine or other large volume applications. The Type 310A fuel pressure regulator includes one Type 32A pilot assembly mounted on the main valve for pressure reducing or wide-open monitoring applications. Type 310A fuel pressure regulator has accurate control, tight shutoff, high capacity, and fast speed of response.

Body Sizes and End Connection Styles

NPT: NPS 1
CL300 RF and CL600 RF: NPS 1, 2, 3, 4, or 4 x 6 / DN 25, 50, 80 100, or 100 x 200

Maximum Inlet Pressure

1480 psig / 102 bar

Maximum Outlet (Casing) Pressure

1480 psig / 102 bar

Outlet Pressure Ranges

10 to 750 psig / 0,69 to 51,7 bar in five ranges

Temperature Capabilities

-20° to 300°F / -29° to 149°C
