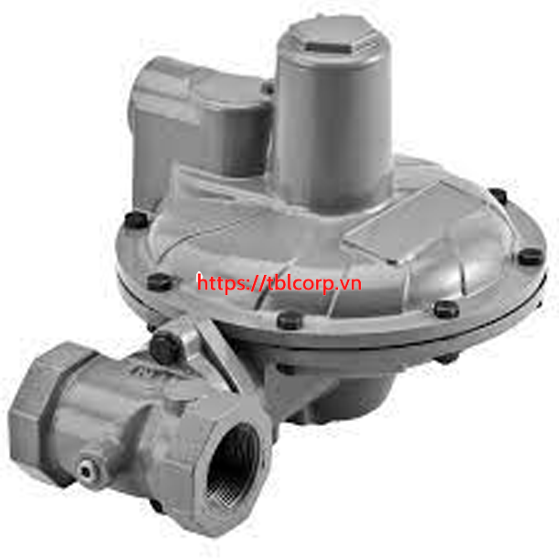

Fisher CS200 industrial Pressure reducing regulator

This manual provides instructions for the installation, maintenance, and parts ordering information for Types CS200IN, CS200IR, CS205IN, CS205IR, and CS206IR service regulators.
EMERSON
  • Thông tin sản phẩm
  • Tập tin
Fisher CS200 industrial Pressure reducing regulator

The CS200 Series regulators are typically installed on industrial and commercial applications.  All constructions include internal pressure registration.  Types CS200IR, CS205IR, and CS206IR contain an internal relief valve.  Types CS200IN and CS205IN do not contain internal relief.

Inlet Pressure Ratings and Flow and Sizing Coefficients

Series Orifice Size Maximum Operating
Inlet Pressure		 Maximun Emergency Inlet Pressure Flow  Coefficients
(Wide-Open)

C1



 IEC Sizing Coefficients
Inch mm  psig bar  psig bar Cg Cv XT FD FL
CS200 1/8
3/16
1/4
3/8
1/2		 3.2
4.8
6.4
9.5
13		 125
125
125
60
40		 8.6
8.6
8.6
4.1
2.8		 175 12.1 12
24
44
102
172		 0.40
0.80
1.52
3.30
4.40		 30
30
29
31
39		 0.53
0.58
0.53
0.60
0.97		 0.87
0.82
0.85
0.83
0.72		 0.89
CS205 and
CS206		 1/8
3/16
1/4
5/16		 3.2
4.8
6.4
7.9		 125
125
125
100		 8.6
8.6
8.6
6.9		 17
37
65
88		 0.6
1.4
2.2
2.7		 28
27
30
33		 0.50
0.49
0.50
0.65		 0.82
0.80
0.80
0.79

Outlet Pressure Ranges

Series SPRING RANGE Part  Number Spring Color Spring Wire Diameter  Spring Free Length
Inches w.c. mbar  Inch mm Inch mm
CS200 3.5 to 5
4.5 to 6.5
6 to 8
7.5 to 11
10 to 14
12 to 19
18 to 1 psig
1 to 2 psig 		 9 to 12
11 to 16
15 to 20
19 to 27
25 to 35
30 to 47
45 to 69
69 to 138 		 GE30198X012 GE30195X012 GE30188X012 GE30189X012 GE30224X012 GE30196X012 GE30225X012 GE30190X012  Red
Purple
Gold
Blue Unpainted Green Orange
Black 		 0.102 0.090 0.111 0.112 0.102 0.112 0.120 0.145  2.59 2.28 2.82 2.84 2.59 2.84 3.04 3.68  3.95 4.32 4.48 4.40 4.78 4.40 4.94 4.66  100
110
114
112
121
112
125
118

Body Sizes, Material, End Connection, and Pressure Rating

Type Body Size, NPS End Connection Body Material Pressure Rating
psig bar
CS200 3/4
3/4 x 1
3/4 x 1-1/4
1
1 x 1-1/4
1-1/4		 NPT  Gray Cast Iron  175  12.1



  • CS200
  • Liên hệ
  • 234

Fisher CS200 industrial Pressure reducing regulatorDownload
