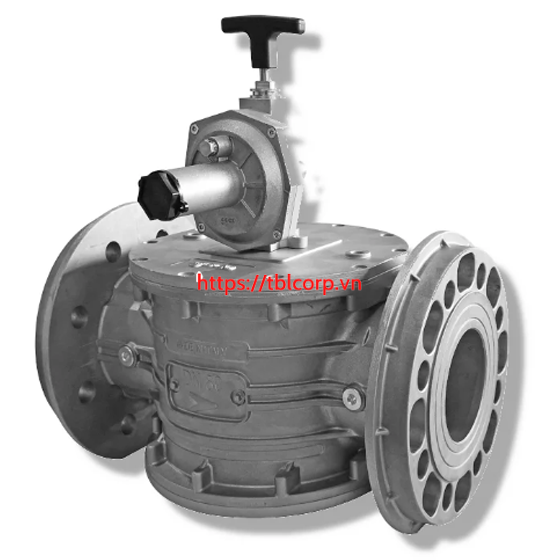

SLAM SHUT OFF VALVES SVD65 SVD80 SVD100

TECHNICAL FEATURES

Pmax: 6 bar
Inlet connection:   Flanged DN65 , DN80 , DN100  – PN16
Setting range: 60 -  700 mbar – Standard spring supplied 200 – 700 mbar
Closing time: <1 second
Use: Non – Aggressive gases – Family 1-2-3 and air
Working Temperature: - 15 °C  / + 70 °C
Approval: PED
Protection degree:    IP65

Materials:

Body: Brass ST-CW617N – EN 12420 – Yellow Painted
Seals: NBR
Internal componentes: Brass
