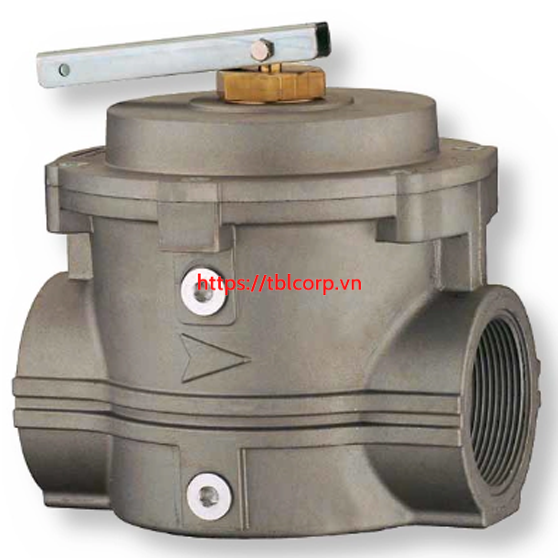

Jerk on/off valve JVD32-6B, JVD40-6B, JVD50-6B, JV032-6B, JV040-6B, JV050-6B

The Jerk Handle Valves mod. JV & JVD are designed in accordance with the provisions of the direcxtive 2014/68/EU. They can be used for all types of natural gas, LPG or not corrosive gases. The Jerk Handle Valves mod. JV & JVD are manually operated valves that allow the passage inside the piping while minimizing the pressure losses. With the possibility of remote interception operation; the closing operation is faster and safer than traditional ball valves
Tecnocontrol Geca
  • Thông tin sản phẩm
  • Tập tin
Jerk on/off valve JVD32-6B, JVD40-6B, JVD50-6B, JV032-6B, JV040-6B, JV050-6B

TECHNICAL FEATURES

Pmax: 6 bar / available version 10 bar
Inlet connection: Threaded gas  1 ¼”, 1 ½” and 2” - ISO 228
Closing time: <1 second
Use: Non – Aggressive gases – Family 1-2-3 and air
Working Temperature: - 15 °C  / + 70 °C
Approval: PED
Protection degree: IP65

Materials:

Body: Die - Cast Aluminium Gd-AlSi12Cu -EN AB 46100
Seals: NBR
Handle: Staineless steel
Internal componentes: Aluminim and brass

Code Description  Dimension Pmax
JV032-6B Jerk on/off valve  1 ¼”  6 bar
JV040-6B Jerk on/off valve 1 ½”  6 bar
JV050-6B Jerk on/off valve 2” 6 bar
JVD32-6B Jerk on/off valve DN32  6 bar
JVD40-6B Jerk on/off valve DN40 6 bar
JVD50-6B Jerk on/off valve DN50 6 bar
