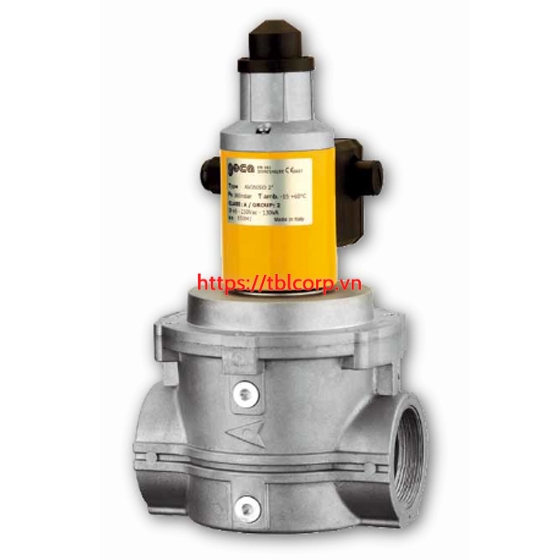

Automatic Gas Valves - Slow Opening / Fast Closing 1 ¼”, 1 ½” and 2” – Pmax 360 mbar

Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes.
Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automatically when the coil is powered and close automatically when there is no tension.

Standard Specifications

• Pmax 360 mbar
• Opening time Adjustable - 0,5 to 25 sec
• Closing time <1 second
• Incorporated AISI 303 steel mesh filter on request
• Supply voltage 230V (-15%+10%) 50-60Hz - 110V (-15%+10%) 50-60Hz - 24Vdc (-15%+10%) 50-60Hz
• Use Non – aggressive gases – Family 1 – 2 – 3 and air
• Test point 2 connections - options 3 connections Screw ¼”
• Working Temperature - 20 °C – 60 °C
• Approval EN161 / PED
• Protection degree IP65
• Complete Body Die – Cast Aluminium Gd – AlSi12Cu - EN AB 46100
