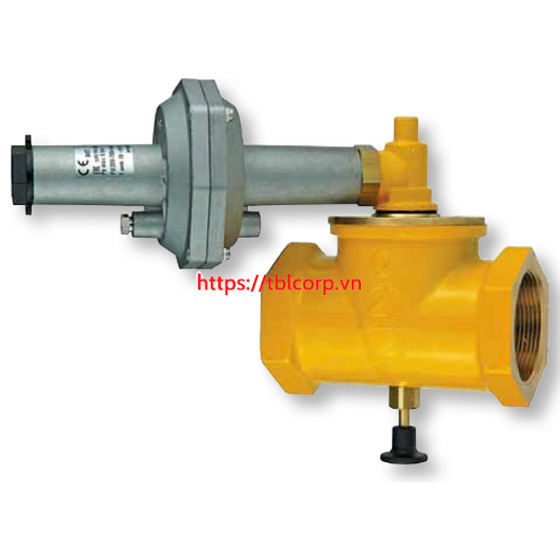

SLAM SHUT OFF VALVES SV032 SV040 SV050 SVD32 SVD40 SVD50

TECHNICAL FEATURES

Pmax: 6 bar
Inlet connection:   Threaded gas 1 ¼” , 1 ½” , 2”  – ISO228
Setting range: 60 -  700 mbar – Standard spring supplied 200 – 700 mbar
Closing time: <1 second
Use: Non – Aggressive gases – Family 1-2-3 and air
Working Temperature: - 15 °C  / + 70 °C
Approval: PED
Protection degree:    IP65

Materials:

Body: Brass ST-CW617N – EN 12420 – Yellow Painted
Seals: NBR
Internal componentes: Brass
