SE237 Máy dò khí gas Technocontrol

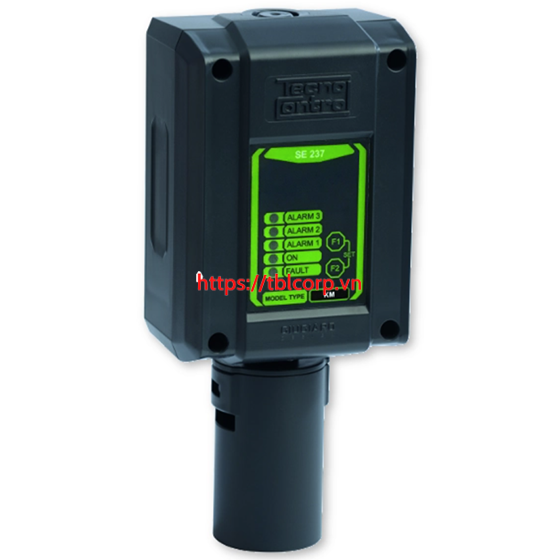

SE237 is a flammable gas detector with catalytic, pellistor,electrochemical or semiconductor sensor, consisting of a housing, which contains the electrical circuit and the connection terminals. The sensor is inserted into the sensor holder at the bottom of the housing.

Standard Specifications

• IP Rating: IP65
• No. 3 Alarm relays. MAX resistive load 24V/1A SPST
• No. 1 Fault relay. MAX resistive load 24V/1A SPST
• Alarm levels (relays) programmables via DIP-Switch
• No. 1 linear 4÷20 mA current output
• No. 5 LED shows the working conditions
• (red: alarms; green: normal; yellow: fault)
• Terminals plug-in polarized type
