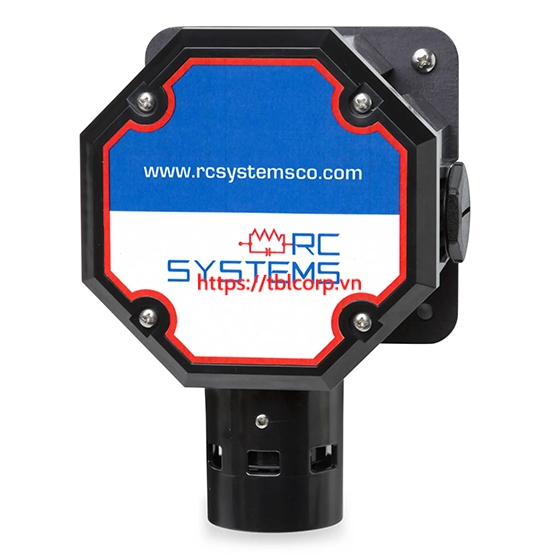

Máy dò khí SenSmart 1100 EC Gas Detector

RC Systems’ SenSmart 1100 EC O₂ sensor and toxic gas detector utilizes a 2-wire 4-20mA sensor transmitter. It accepts low-power, electrochemical oxygen or toxic gas detection modules and functions in a sink mode to transmit gas value to the appropriate receiver device.

This gas detector is suitable for Division 1 and Division 2 hazardous areas. It may be installed as an intrinsically safe device with a barrier, or explosion-proofed for NEMA 7 installations.

Features & Highlights of the SenSmart 1100 EC

• Field replaceable toxic gas/oxygen sensor module
• Range & target gas configured on sensor module
• Low-level sensor signals are protected within stainless steel sensor head for improved system noise immunity
• Industry-standard 4-20mA signal may be transmitted thousands of feet on 2-wires
• 2-wire 4-20mA signal is nonpolar with protective “steering diode” interface
• Missing sensor forces <2mA FAULT indication
• Standard “Fault Supervision” circuitry continuously monitors for failed sensor. 4-20mA output transmits <2mA during failures
• Designed for use with RC Systems’ 2-, 4-, 16-, or 64-channel controllers
• All components contained inside the sensor head
