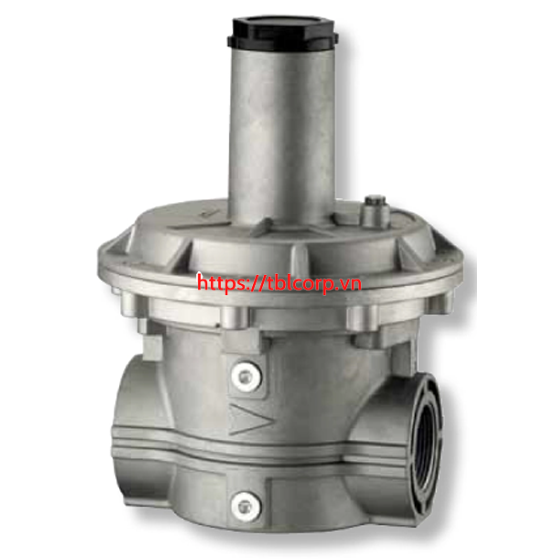

RELIEF VALVE RV032 RV040 RV050 RVD32 RVD40 RVD50

TECHNICAL FEATURES

Pmax: 1 bar
Inlet - Outlet thread: thread 1 ¼” , 1 ½” , 2”  ISO228/1
Connection: DN32 /DN40/DN50- Sliding Aluminium flange PN10
Setting range: 20 - 600 mbar - Standard spring supplied 200 - 600 mbar
Screw Plugs 1/8"
Working Temperature: - 20 °C - + 60°C
Use: Not aggressive gases of three families – Natural gas – LPG –  Town gas – Air
Approval   PED / EAC

Materials:

Complete Body Die - Cast Aluminium Gd - AlSi12Cu - EN AB 46100
Diaphragms NBR 60Sh - DvGW EN 549
