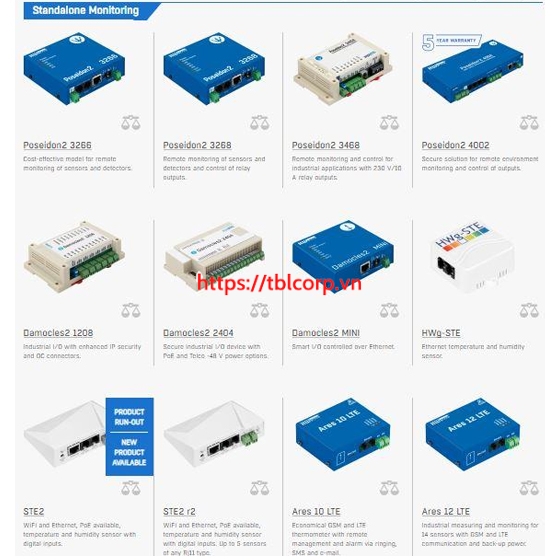

Name: Product map - Standalone Monitoring
SKU: SP0691
Availability: InStock
Rating: 4.4 (89 reviews)

Product map - Standalone Monitoring

Thông tin sản phẩm
Tập tin

		Perseus Energy 240	Perseus Energy 242	Perseus Energy 285	Perseus Monitoring 140	Perseus Monitoring 145	Perseus Monitoring 150	Perseus Monitoring 155
Protocols	IPv6	YES	YES	YES	YES	YES	YES	YES
	SNMP	SNMP v1 + SNMP v3	SNMP v1 + SNMP v3	SNMP v1 + SNMP v3	SNMP v1 + SNMP v3	SNMP v1 + SNMP v3	SNMP v1 + SNMP v3	SNMP v1 + SNMP v3
	SNMP Trap	1	1	1	1	1	1	1
	COAP	NO	NO	NO	NO	NO	NO	NO
	DHCP	YES	YES	YES	YES	YES	YES	YES
	HTTP	YES	YES	YES	YES	YES	YES	YES
	HTTPS	YES	YES	YES	YES	YES	YES	YES
	XML	YES	YES	YES	YES	YES	YES	YES
	SMTP	1	1	1	1	1	1	1
	SMTP TLS	YES	YES	YES	YES	YES	YES	YES
	HWg-Push (SensDesk)	YES	YES	YES	YES	YES	YES	YES
	NB-Push	NO	NO	NO	NO	NO	NO	NO
	HWg-DCD	NO	NO	NO	NO	NO	NO	NO
	Net-GSM (SMS GW)	YES	YES	YES	YES	YES	YES	YES
	MQTT	YES	YES	YES	YES	YES	YES	YES
	Modbus/TCP	YES	YES	YES	YES	YES	YES	YES
	Syslog	NO	NO	NO	NO	NO	NO	NO
Meters API
Meters API	Meters limit	100	100	100	100	100	100	100
	Meters API: 1-Wire	NO	YES	YES	YES	YES	YES	YES
	Meters API: RS-485/HWg	NO	NO	NO	NO	NO	NO	NO
	Meters API: Modbus/RTU	YES	YES	YES	YES	YES	YES	YES
	Meters API: Modbus/TCP	YES	YES	YES	YES	YES	YES	YES
	Meters API: HWg XML	YES	YES	YES	YES	YES	YES	YES
	Meters API: SNMP	YES	YES	YES	YES	YES	YES	YES
	Meters API: MQTT	YES	YES	YES	YES	YES	YES	YES
	Meters API: M-Bus	NO	YES	YES	NO	NO	NO	NO
Sensors
Sensors	Variables limit	1000	1000	1000	1000	1000	1000	1000
	1-Wire values*	0	100	100	100	100	100	100
	RS-485 values*	100	100	100	100	100	100	100
	Number of 1-Wire ports		4	6	4	4	8	8
	Number of RS-485 ports	1	1	1	1	1	1	1
	M-BUS meters		100	100
	Number of M-Bus ports		1	1
	Inputs		Inputs type: Dry Contact Quantity: 2 Counters: YES Inputs type: Water Leak Detection zone Quantity: 1 Counters: NO	Inputs type: Dry Contact Quantity: 4 Counters: YES Inputs type: Water Leak Detection zone Quantity: 1 Counters: NO	Inputs type: Dry Contact Quantity: 4 Counters: YES Inputs type: Water Leak Detection zone Quantity: 1 Counters: NO	Inputs type: Dry Contact Quantity: 4 Counters: YES Inputs type: Water Leak Detection zone Quantity: 1 Counters: NO	Inputs type: Dry Contact Quantity: 16 Counters: YES Inputs type: Water Leak Detection zone Quantity: 1 Counters: NO	Inputs type: Dry Contact Quantity: 16 Counters: YES Inputs type: Water Leak Detection zone Quantity: 1 Counters: NO
	Outputs		Output type: Relays standard Quantity: 1 Load voltage: 50V / 1000mA	Output type: Relays standard Quantity: 2 Load voltage: 50V / 1000mA	Output type: Relays standard Quantity: 2 Load voltage: 50V / 1000mA	Output type: Relays standard Quantity: 2 Load voltage: 50V / 1000mA	Output type: Relays standard Quantity: 4 Load voltage: 50V / 1000mA	Output type: Relays standard Quantity: 4 Load voltage: 50V / 1000mA
	Box2Box	Box2Box type: XML Quantity: 1000	Box2Box type: XML Quantity: 1000	Box2Box type: XML Quantity: 1000	Box2Box type: XML Quantity: 1000	Box2Box type: XML Quantity: 1000	Box2Box type: XML Quantity: 1000	Box2Box type: XML Quantity: 1000
Alarms
Alarms	Trap destinations	100	100	100	100	100	100	100
	SMS dest.	100	100	100	100	100	100	100
	Alarm reminder	YES	YES	YES	YES	YES	YES	YES
	Periodical status	YES	YES	YES	YES	YES	YES	YES
Power and dimensions
Power and dimensions	Power supply	Power supply: 9-30V / 500mA Connector: Jack (barrel, inner 2,1 mm outer 5,5 mm) Power supply: 9-30V / 500mA Connector: Terminal Block	Power supply: 24V Connector: Terminal Block	Power supply: 230V / 130mA Connector: Terminal Block	Power supply: 9-30V / 500mA Connector: Jack (barrel, inner 2,1 mm outer 5,5 mm) Power supply: 9-30V / 500mA Connector: Terminal Block	Power supply: 9-30V / 500mA Connector: Jack (barrel, inner 2,1 mm outer 5,5 mm) Power supply: 9-30V / 500mA Connector: Terminal Block	Power supply: 9-30V / 500mA Connector: Jack (barrel, inner 2,1 mm outer 5,5 mm) Power supply: 9-30V / 500mA Connector: Terminal Block Power supply: 48V / 250mA Connector: Terminal Block Power supply: PoE / 250mA Connector: RJ-45	Power supply: 9-30V / 500mA Connector: Jack (barrel, inner 2,1 mm outer 5,5 mm) Power supply: 9-30V / 500mA Connector: Terminal Block Power supply: 48V / 250mA Connector: Terminal Block Power supply: PoE / 250mA Connector: RJ-45
	PoE/48V	NO	NO	NO	NO	NO	YES	YES
	Operating environment	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 65°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 65°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 65°C / 5%RH ÷ 95%RH
	Storage environment	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH	-30°C ÷ 85°C / 5%RH ÷ 95%RH
	Depth	38mm	135mm	65mm	38mm	38mm	38mm	38mm
	Dimensions	145mm / 121mm / 38mm / 488g	145mm / 38mm / 135mm / 505g	213mm / 90mm / 65mm / 529g	145mm / 135mm / 38mm / 550g	145mm / 135mm / 38mm / 550g	300mm / 145mm / 38mm / 1120g	300mm / 145mm / 38mm / 1120g
Interface
Interface	Logger size	16 MB	16 MB	16 MB	16 MB	16 MB	16 MB	16 MB
	Ethernet	10/100Mbit	10/100Mbit	10/100Mbit	10/100Mbit	10/100Mbit	10/100Mbit	10/100Mbit
	WiFi	NO	NO	NO	NO	NO	NO	NO
	Mobile networks	NO	NO	LTE	NO	LTE	NO	LTE
	RS-232	NO	NO	NO	NO	NO	NO	NO
	RS-485	YES	YES	YES	YES	YES	YES	YES
Type
Type	Environment	Industrial, SoHo, IT	Industrial, SoHo, IT	Industrial, SoHo, IT	Industrial, SoHo, IT	Industrial, SoHo, IT	Industrial, SoHo, IT	Industrial, SoHo, IT
	Installation	Rack, Table	Rack, Table, Wall	DIN	Rack, Table	Rack, Table	Rack, Table	Rack, Table
	IP Rating	IP40	IP40	IP40	IP40	IP40	IP40	IP40
