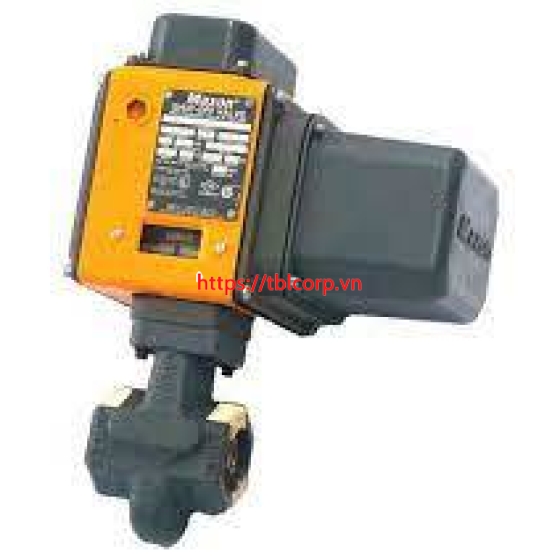

Maxon 150SMA11-AA11-CC23A0 Van đóng ngắt an toàn tự động
MAXON 150SMA11-AA11-CC23A0 AUTO SHUTOFF VALVE - GAS ELECTRO-MECHANICAL VALVES
MAXON electro-mechanical valves are electrically actuated fuel shut-off valves. The valves are designed for a fast acting return to the at rest position upon removal of a
control voltage signal. Motorized automatic and manual actuators are available depending on application needs. In addition, normally-closed and normally-open options are
available. The normally-closed versions will shut off flow when de-energized and pass flow when energized. The normally-open versions will shut off flow when energized
and pass flow when de-energized. Electro-mechanical valves are also offered in configurations that meet hazardous locations.
Segment name | Segment description | Segment choices (DEFAULT is shaded) |
Segment choice description | |
Configured item number | VALVE SIZE | 150 | 150 - 1-1/2” | |
FLOW CAPACITY | S | S - Standard | ||
VALVE TYPE | MA | MA - MAXON automatic (motorized) | ||
NORMAL POSITION | 1 | 1 - Normally-closed shut-off valve | ||
AREA CLASSIFICATION | 1 | 1 - General purpose | ||
Valve body | BODY CONNECTION | Type of body connection | A | (A) ANSI threaded |
BODY SEALS, BUMPER MATERIAL |
Material specification for valve body seals and bumper |
A | (A) Buna o-rings/Buna bumper | |
BODY MATERIAL | Type of valve body material | 1 | (1) Cast iron | |
INTERNAL TRIM PACKAGE | Materials used for valve body internal components | 1 | (1) Trim package 1 | |
Actuator | SOLENOID OR CIRCUIT BOARD VOLTAGE | Electrical voltage | C | (C) 230VAC 50 Hz |
MOTOR VOLTAGE OR HANDLE SIDE PLATE OPTIONS |
Motor voltage - actuator (Automatic valves) |
C | (C) 230VAC 50 Hz |
|
MOTOR TIMING | Opening time desired (automatic valves ONLY) | 2 | (2) 6 second | |
SWITCHES | Switch options - automatic valves |
3 | (3) VOS2/VCS1 | |
ENCLOSURE RATING | Rating of actuator enclosure | A | (A) NEMA 4 | |
SECONDARY LANGUAGE | Second language for valve labeling |
0 | (0) English |
