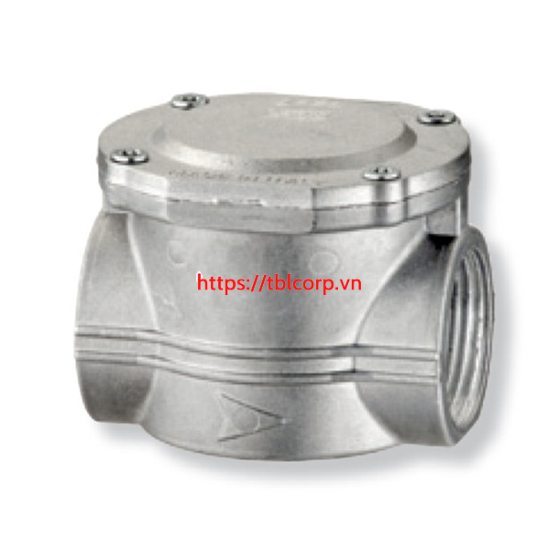

Bộ lọc khí GF015SC GF020SC GF025SC

Gas filters designed in accordance with the provisions of DIN.3386 standards can be used for all the types of natural gas, LPG or not corrosive gases. These filters are widely used for protection of control devices, pressure regulators, meters and on systems that requiring an high degree of filtration. All the filter covers are filled with connections for test point both at the filter inlet and outlet
Tecnocontrol Geca
  • Thông tin sản phẩm
  • Tập tin
Bộ lọc khí GF015SC GF020SC GF025SC

TECHNICAL FEATURES

Operation maximum pressure: 6 bar / available version 10 bar
Working Temperature:  - 20 °C – + 60 °C
Filtration:  ≤ 50 Micron
Use:  Non – aggressive gases – Family 1 – 2 – 3 and air
Cartridge element: Plastic cartidge PP
Connection: ½” – ¾” – 1”  Wall boiler – ISO 228
Complete Body: Die – Cast Aluminium: Gd – AlSi12Cu – EN AB 46100
Seals: NBR
Approval: PED / EAC

Code Description Dimension  Pmax
GF015SC Gas filter small capacity ½”  6 bar
GF020SC  Gas filter small capacity  ¾”  6 bar
GF025SC  Gas filter small capacity  1”  6 bar
