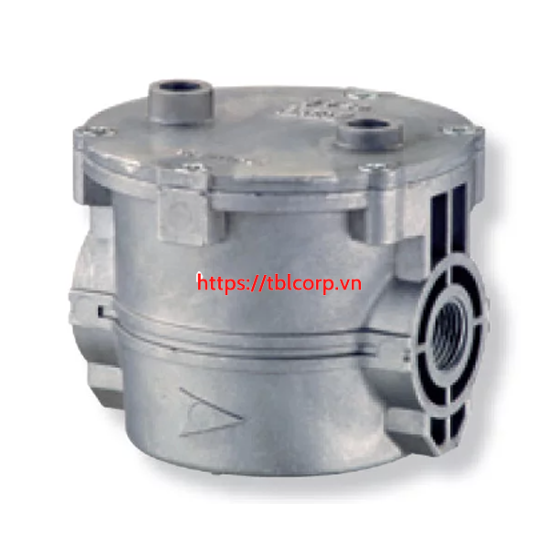

GAS FILTER GF015 GF020 GF025 GFD25

TECHNICAL FEATURES

Operation maximum pressure: 6 bar / available version 10 bar
Working Temperature:  - 20 °C – + 60 °C
Filtration:  50 Micron
Use:  Non – aggressive gases – Family 1 – 2 – 3 and air
Cartridge element: Viledon cartridge
Inlet - Outlet: Theread gas 1/2” – ¾” 1”  – ISO 228
Connection DN25 - Sliding Aluminium  flange PN10
Complete Body:  Die – Cast Aluminium Gd – AlSi12Cu  - EN AB 46100
Seals: NBR
Approval: PED / EAC

Optional:

- Test point – NPT ¼”
- Screw – NPT ¼”
- Peters plug
- Manometer
- DP clogging indicator
