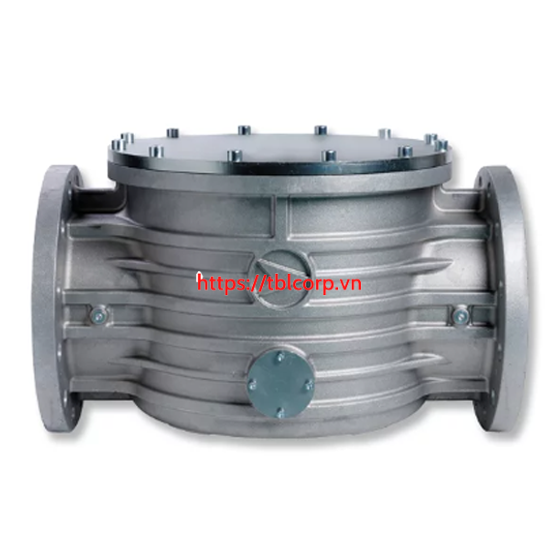

GAS FILTER DN125 – DN150 – Pmax 6 bar

TECHNICAL FEATURES

Operation maximum pressure: 6 bar / available version 10 bar
Working Temperature:  - 20 °C – + 60 °C
Filtration:  50 Micron
Use:  Non – aggressive gases – Family 1 – 2 – 3 and air
Cartridge element: Viledon cartridge
Connection: Flanged PN16 – DN125  –  DN150
Complete Body:  Aluminium EN AC 43100
Seals: NBR
Approval: PED / EAC

Optional:

- Test point – NPT ¼”
- Screw – NPT ¼”
- Peters plug
- Manometer
- DP clogging indicator
