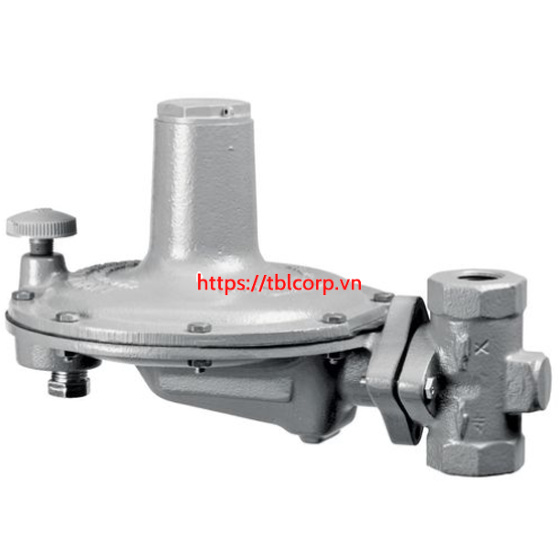

Fisher Y600A Series Pressure Reducing Regulators Emerson

Y600A Series regulators have a large diaphragm area that provides accurate control at low-pressure settings. Types Y600A and Y600AR come with a pitot tube providing greater capacity through a dynamic boost. Type Y600AM uses external registration with a 1/2 NPT downstream control line connection and an O-ring stem seal.

Body Sizes and End Connection Styles

NPS 3/4 or 1, NPT

Maximum Inlet Pressure

150 psig / 10.3 bar

Temperature Capabilities

-20 to 180°F / -29 to 82°C

Pressure Registration

Internal or External

Approximate Weight

10 Pounds / 6 kg

Additional Technical Data

For additional technical information, contact your local Sales Office or refer to technical documentation
