Available Configurations
Type CP200IN - Regulator with internal registration
Type CP200IT - Regulator with internal registration and token relief
Type CP205IN - Type CP200IN with Secondary Seat™ Protection
Type CP205IT - Type CP200IT with Secondary Seat Protection
Type CP206IT - Type CP200IT with Secondary Seat
Protection with bleed to indicate Secondary Seat is functioning
Inlet Pressure Ratings and Flow and Sizing Coefficients
| Series |
Orifice Size |
Maximum Operating
Inlet Pressure |
Flow Coefficients
(Wide-Open) |
C1
|
IEC Sizing Coefficients |
| Inch |
mm |
psig |
bar |
Cg |
Cv |
XT |
FD |
FL |
| CP200 |
1/8
3/16
1/4
3/8
1/2 |
3.2
4.8
6.4
9.5
13 |
125
125
125
60
40 |
8.6
8.6
8.6
4.1
2.8 |
12
24
44
102
172 |
0.40
0.80
1.52
3.30
4.40 |
30
30
29
31
39 |
0.53
0.58
0.53
0.60
0.97 |
0.87
0.82
0.85
0.83
0.72 |
0.89 |
CP205 and
CP206 |
1/8
3/16
1/4
5/16 |
3.2
4.8
6.4
7.9 |
125
125
125
100 |
8.6
8.6
8.6
6.9 |
12
24
44
70 |
0.4
0.8
1.5
2.7 |
30
30
29
30 |
0.53
0.58
0.53
0.53 |
0.87
0.82
0.85
0.85 |
Outlet Pressure Ranges
| Outlet Pressure Ranges |
Part Number |
Spring Color |
Spring Wire Diameter |
Spring Free Length |
| psig |
bar |
Inch |
mm |
Inch |
mm |
| 1 to 2 |
69 mbar to 0.14 bar |
GE30199X012 |
Yellow Stripe |
0.078 |
1.98 |
1.35 |
34.3 |
| 2 to 5 |
0.14 to 0.34 |
GE27213X012 |
Orange Stripe |
0.100 |
2.54 |
1.47 |
37.4 |
| 5 to 10 |
0.34 to 0.69 |
GE39890X012 |
Black Stripe |
0.114 |
2.90 |
1.47 |
37.4 |
| 10 to 20 |
0.69 to 1.4 |
GE30200X012 |
Purple Stripe |
0.137 |
3.48 |
1.42 |
36.2 |
Body Sizes, Material, End Connection, and Pressure Rating
| Type |
Body Size, NPS |
End Connection |
Body Material |
Face-to-face Dimension |
Pressure Rating |
| Inch |
mm |
psig |
bar |
CP200, CP205,
and CP206 |
3/4 |
NPT |
Gray Cast Iron |
4 |
102 |
175 |
12.1 |
| 3/4 x 1 |
| 3/4 x 1-1/4 |
| 1 |
| 1 x 1-1/4 |
| 1-1/4 |

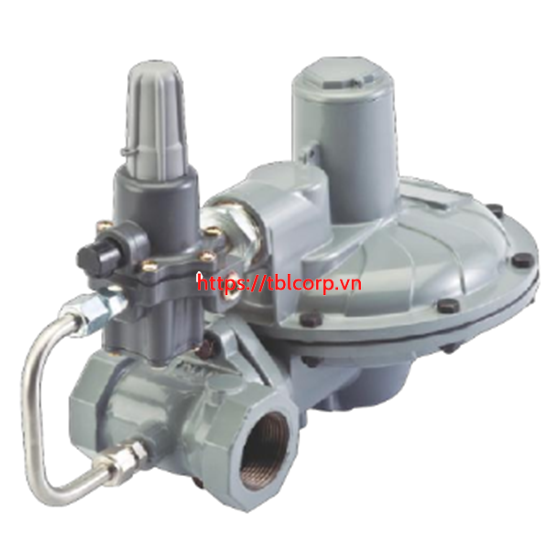

Fisher CP200 industrial Pressure reducing regulatorDownload
