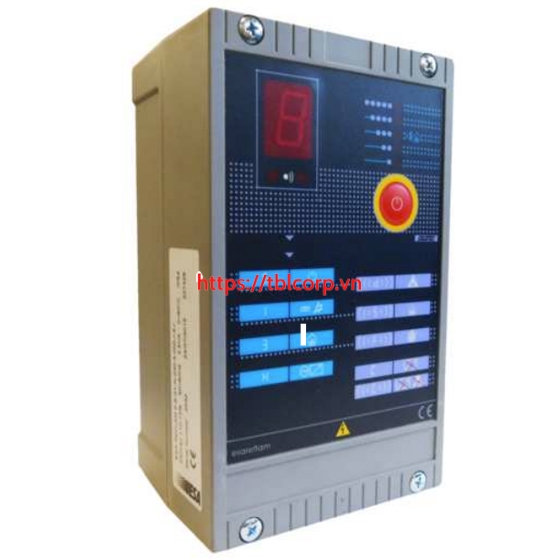

ESA REFLAM-H thiết bị phát hiện ngọn lửa

ESA REFLAM-H is a flame detector or a microprocessor burner control device equipped with inputs and outputs for controlling and signaling the flame presence for multiple-nozzle burners or for all the applications in which it is impossible to directly control the fuel gas.

APPLICATIONS

• Flame detector with signalling to remote devices by means of digital signals or ECS serial communication.
• Automatic burner control for multi-nozzle or multiflame burners.
• Gas and oil burners with any type of capacity, with permanent or non-permanent operation.
• Burners with electrode, unirod and UV detection (also combined).
• Permanent operation by electrode detenction or by UV scanner and shutter.
• Package burners with complete ignition cycle control (blower, air regulation valve, pressure switch and air flow switch).
• Plants with burner control via digital signals or ECS serial communication.
• Personalized burner control via optional configuration cards.

GENERAL

• Voltage supply: 115 Vac or 230 Vac +10 ÷ -15%
• Frequency supply: 45÷65 Hz
• Type of supply: phase-neutral, not appropriate for phase-phase systems
• Neutral: suitable for ground and non ground neutral systems
• No-load absorption: 5 VA max ¾Working temperature (mode 1,3,4): 0÷60 °C
• Working temperature (mode 2) without expansion: 0÷70 °C
• Storage temperature: -20÷80 °C ¾Protection degree:IP54 (for wiring use specific glands)
• Mounting position: any
• Working environment: not suitable for explosive or corrosive environments
• Container: Thermosetting glass fiber
• Size: 200×120×93 mm ¾Mass: 1.300 g
