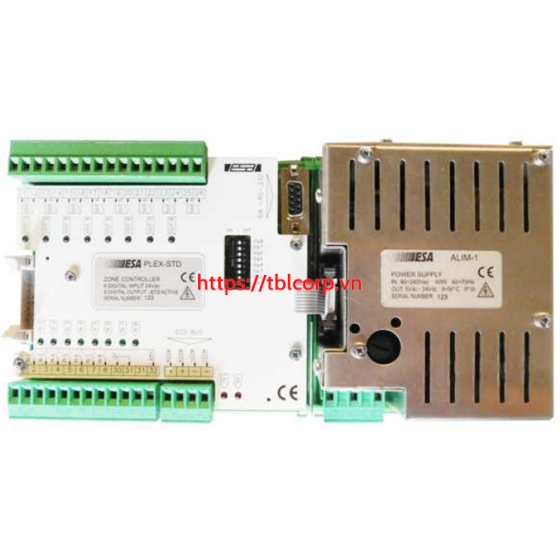

The PLEX-STD ESA device is a controller for setting zones that, by exploiting the ECS communication bus, is able to manage the switching on and off of the burners beyond that indicate their status to their control devices. ESA PLEX-STD is available in different versions depending on the number of zones or system needs, and through a dip swicth bench you can set up the operation in a simple and practical defining the most appropriate one for your application.
APPLICATIONS
- Converter of digital commands in serial communication, for the management of areas or burners through the ECS bus.
- Communication interface for ESA ESTRO flame control.
- Multi-zone control with digital outputs related to the states of individual zones or burners.
GENERAL
- Supply voltage : 90÷240Vac
- Supply frequency: 40÷70Hz
- Maximum absorption: 40VA
- Operating temperature: 0÷50°C ¾Storage temperature: -10÷70°C ¾Fastening: on DIN 35mm rail (EN50022)
- Mounting position: any
- Protection degree: IP10
- Working environment: not suitable for explosive or corrosive environments
- ESA PLEX-8S/7T/4D size: 220X125 H80mm
- ESA PLEX-16S/15T/8D size: 315X125 H80mm
- ESA PLEX-24S/23T/12D size: 410X125 H80mm
- ESA PLEX-8S/7T/4D weight: 900g
- ESA PLEX-16S/15T/8D weight: 1100g
- ESA PLEX-24S/23T/12D weight : 1300g
- Digital input voltage: 24Vdc
- Length of digital input line: max 5mt
