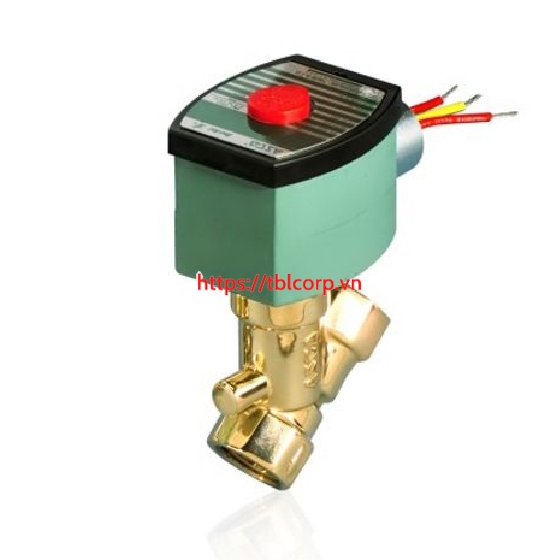

ASCO™ 8030G003AC100/50D

Features

Ideal for low pressure general service and vacuum applications.

Brass constructions available for fuel gas service in commercial and industrial gas burners

Gas shutoff model has 2-way normally closed operation

Gas vent model has 2-way normally open operation

Most constructions mountable in any position for convenient installation

Specifications

• Body Material: Brass
• Flow (Cv) / Flow (Kv): 5.00 / 4.33
• Function: 2 way - 2/2 Normally Closed
• Pipe/Port Type & Size: NPT 3/4
• Valve Actuation: Solenoid - Direct Acting
• Product Weight: 2.40 lbs
• Kit Number: 302791
• Coil Class: FT
• Coil Number: 238610-027-D
• Min to Max Ambient Temperature: 32 - 125 °F
• Min to Max Fluid Temperature: 32 - 180 °F
• Orifice Size: 3/4 in
• Voltage & Frequency: 100 Volts AC with 50 Hz
• Watt Rating: 10.1 W
• Item Status: Active
• Lead Length: 18 inch
• Carton Note: 3/4 X 3/4 2NC BRASS 10.1/F AC
• Holding Current (VA): 25
• Seating Elastomer: NBR
• Mounting Direction: Any
• Product Weight: 2.40 lb
