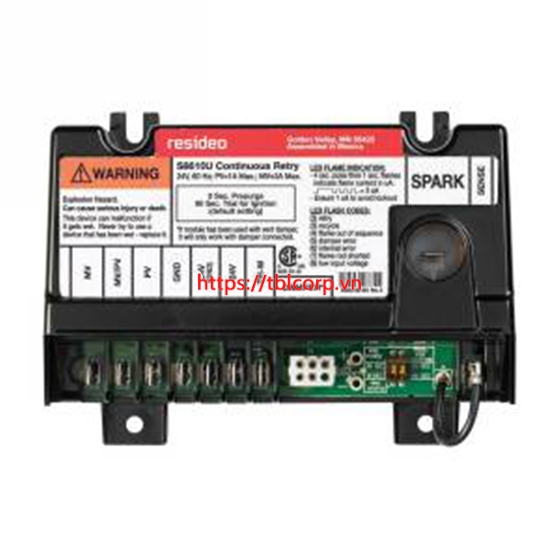

S8610U3009/U Resideo Bộ điều khiển đầu đốt

Features

• Replaces over 400 White-Rogers, Robertshaw and Resideo intermittent pilot ignition modules
• Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances
• Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated. Ignition trial/delay sequence is repeated until the appliance lights or call for heat is removed.
• For use with Natural or LP gas
• For use in single rod or dual rod/remote sense applications
• Includes spark cable adapters to allow field replacement of both Resideo and competitive controls without replacing existing spark cable.

Product Specifications

Dimensions (in.): 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep

Dimensions (mm): 100 mm high x 138 mm wide x 67 mm deep

Includes: Damper connection with automatic vent damper plug

Item Type: Product

Electrical Ratings: 24 Vac

Frequency: 60 Hz

Approvals, Canadian Standards Association: Design Certified

Tradeline Value: Tradeline

Flame Failure Response Time (sec): 2 seconds maximum

PrePurge: Configurable to 30 seconds or no prepurge

Ambient Temperature Range (C): -40 C to +74 C

Ambient Temperature Range (F):-40 F to +165 F

Ignition System Type: Intermittent Pilot

Ignition Sequence: Continuous Retry

Typical Gas Control: VR8204, VR8304

Type of Gas: Natural or LP

Flame Sense: Single Rod or Two Rods

Ignition Source: Internal high voltage spark generator

Ignition Trials To Lockout: continuous retry

Lockout Timing: continuous retry

Ignition Trial Time (sec): 15 or 90 sec

Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 165 F; 1A Pilot, 1A Main @ 175 F

Typical Ignition Hardware: Q345, Q3451, Q3452

Between Trial Time (sec): 5 minute delay after failed trial for ignition.
