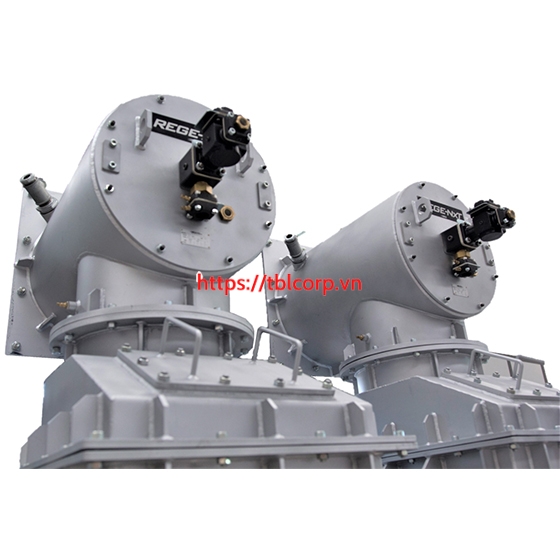

REGE-NxT đầu đốt khí tái sinh
The REGE-NxT burners are regenerative gas burners for direct heating. These burners use combustion fumes to preheat the combustion agent. The system is based on pairs of burners that exchange heat via a heat exchanger that accumulates and yields heat during alternate suction and ejection cycles of the exhaust gases. According to the size and conditions of use, this type of burner guarantees a substantial decrease in consumption compared with traditional burners that are fed by air at room temperature.
APPLICATIONS
Model |
Capacity |
Flame length mm | Flame speed (m/s) | Ignition | Detection |
REGE-4-NxT | 300 | 1200 | 100 | P42PBC-FR/X | UV-2 |
REGE-5-NxT | 400 | 1600 | 100 | P42PBC-FR/X | UV-2 |
REGE-6-NxT | 600 | 1900 | 100 | P64PBC-FR/X | UV-2 |
REGE-7-NxT | 900 | 2200 | 100 | P64PBC-FR/X | UV-2 |
REGE-8-NxT | 1200 | 2600 | 100 | P64PBC-FR/X | UV-2 |
REGE-9-NxT | 1800 | 3400 | 100 | P64PBC-FR/X | UV-2 |
REGE-10-NxT | 2400 | 3800 | 100 | P64PBC-FR/X | UV-2 |
REGE-11-NxT | 3200 | 4200 | 100 | P64PBC-FR/X | UV-2 |
REGE-12-NxT | 4000 | 5000 | 100 | P64PBC-FR/X | UV-2 |
REGE-13-NxT | 5000 | 5500 | 100 | P86PBC-FR/X | UV-2 |
REGE-14-NxT | 6000 | 6200 | 100 | P86PBC-FR/X | UV-2 |
REGE-NxT Regenerative burnersDownload
