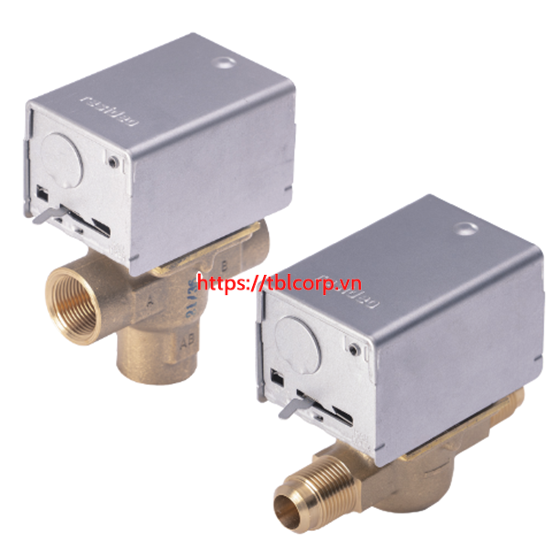

RV4043 RV4044 Van điều khiển FCU Resideo
FEATURES
• RV4043 provides 2-position, straight-through control of water.
• RV4044 provides 2-position diverting control of water.
• Compact construction for easy installation.
• Manual opener for valve operation on power failure
• Valve returns to automatic position when power is restored.
• Motor can be replaced by removing one screw, without disturbing the valve body or draining the system.
• Complete power-head may be removed or replaced without breaking the line connections or draining system.
• All models can be installed without disassembling the valve.
OS# | 2/3 way |
Voltage (Vac) |
Freq (Hz) |
Size (in.) |
Pipe Connection |
Flow Capacity Cv |
Max. Close-Off Pressure(psi) |
Valve Action |
RV4043C1347B | 2 | 220 | 50 | 1/2" | BSPT | 3.5 | 20 | Normally Closed |
RV4043C1354B | 2 | 220 | 50 | 1/2" | Flare | 3.5 | 20 | Normally Closed |
RV4043C1362B | 2 | 220 | 50 | 3/4" | BSPT | 8.0 | 8 | Normally Closed |
RV4044A1704B | 3 | 220 | 50 | 3/4" | BSPT | 7.0 | 10 | Port A normally closed |
RV4044C1668B | 3 | 220 | 50 | 1/2" | BSPT | 3.5 | 20 | Port A normally closed |
