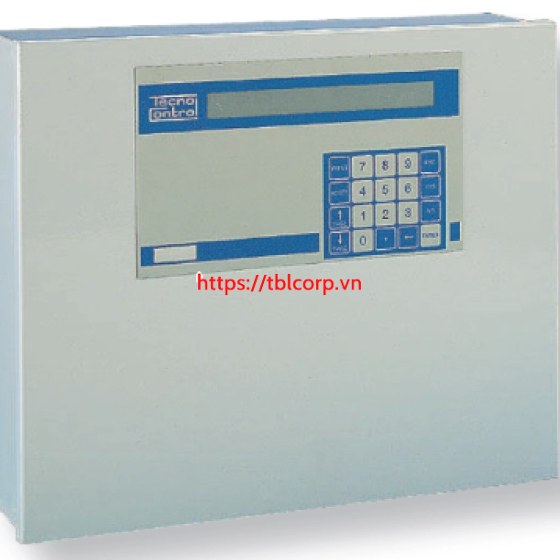

CE700 Bộ điều khiển 200 cảm biến

The microprocessor central unit is usable for big industrial applications and it is arranged to operate matched with remote units type CE380UR which manage 8 sensors each. On the CE700 it is possible to connect max 23 remote units for a total of 184 detectors and relays (with ES480UR boards).Considering 16 inputs and 16 relays available directly in central through specific expansion boards, the total is of 200 detectors and 200 relays available. CE700 central units are available both in wall and in rack versions.

• compatible to sensors Series SE and TS for toxic, inflammable gases and oxygen, also simultaneously
• Serial door with MODBUS RTU protocol, with bidirectional communication for overvision
• Backlit display 2 rows x 40 characters
• 999-event memory

Standard Specifications

• Power supply: 230Vac 50-60Hz
• Measuring range: Programmabile
• Alarm intervention: 3 programmabiles
• Inputs: N° 200 max
• Output: N° 200 relè max
• Capacity: 3A (1A) SPDT 230Vac
• IP40
