Features

• Use VCZZ1XXX with two-way valves.
• Use VCZZ6XXX with three-way valves.
• Quick and easy replacement of moving parts.
• Restores valve to factory-new conditions.
• Using different cartridge changes Cv and flow characteristic of body.
• Identical cartridge can have different Cv in bodies of different sizes.

Product Specifications

Dimensions (in.) 1 1/2 in. diameter x 3 1/8 in. high

Dimensions (mm) 37 mm diameter x 80 mm high

Used With Three-way VC Cartridge Valves with 14 lbf

Comments All VC actuators

Approvals, Canadian Standards Association CSA Certified

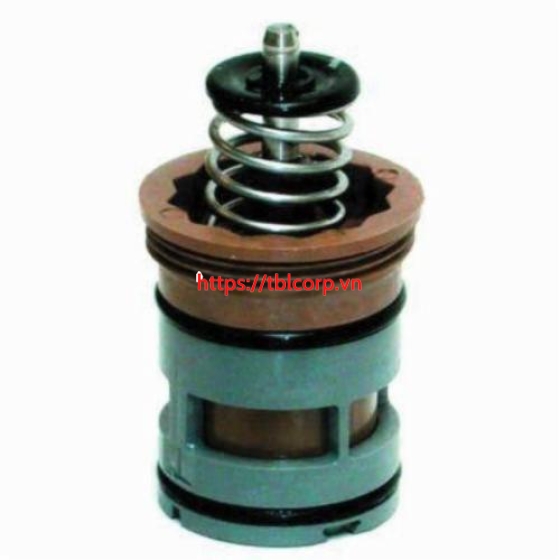

Valve Type Replacement cartridge for VC series

Controlled Fluid Water w/max of 60% Glycol. Not for use with Steam

Materials (Stem) Stainless Steel

Materials (Cartridge) EPDM, Ryton & Noryl plastic

Flow Characteristic Linear

Stem Travel (in.) 0.4 in.

Stem Travel (mm) 10 m
