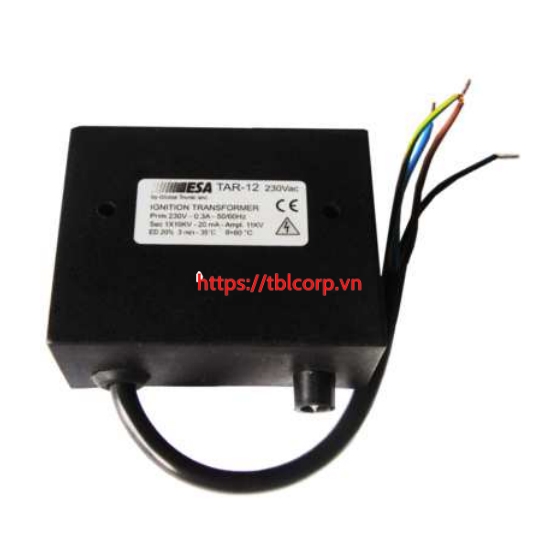

TAR Biến thế đánh lửa

The abbreviation TAR identifies a series of specific transformers for the ignition of gas and fuel oil burners. They will in this case generate a spark which triggers off the the ignition of the industrial burners.

APPLICATIONS

• Electric ignition for gas burners
• Electric ignition for diesel burners
• Electric ignition for oil burners
• Ignition and flame detection with unirod electrode

TAR-10 TRANSFORMER:

• Primary voltage: 115 / 230V
• Primary frequency: 50 / 60Hz
• Primary current: 2/1A
• Secondary voltage: 1 x 8KV
• Secondary frequency: 50 / 60Hz
• Secondary current: 20mA ¾Power consumption: 220VA
• Duty cycle over 3 min. ED: 19% Ta ≤ 35°C ¾Mass: 1.3 kg
• Protection degree: IP20 ¾Power cable length: 18 cm
• HV cable connection: self threading
• HV cable type: silicon (external diameter 7 mm)
• Maximum HV cable length 1 m (max 5 m)
• Working temperature -20÷60 °C
• Transformer use: ignition and detection
• Mounting position: any
• Transformer type: winding
• Distance between ignition electrode terminal and burner mass: 3 mm ± 0,5
