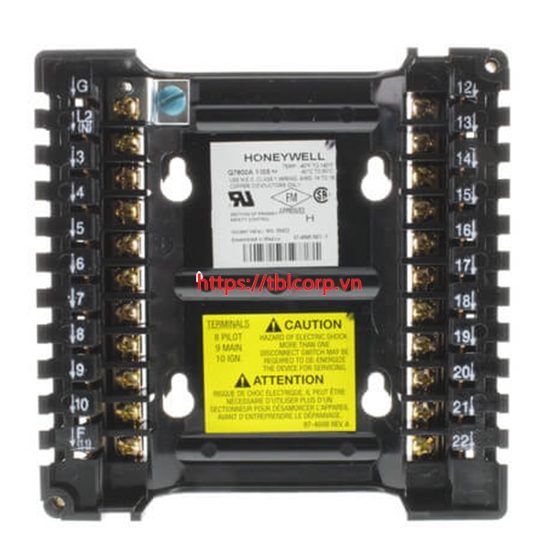

Q7800A,B 22 Đế cắm nối dây của bộ điều khiển đầu đốt

Feature:

• The Q7800A1005 (2-sided) subbase is available forpanel mounting applications
• The Q7800B1003 and Q7800B1011 (4-sided) subbases are available for burner or wall mount applications
• Knockouts are provided in theback, top and bottom for conduit connections

Technical Information:

• Weight:
  • Q7800A: 7 ounces = 198 gram
  • Q7800B: 1 pound, 3 ounces = 539 gram
• Dimensions:
  • Q7800A: 126x36x126 mm
  • Q7800B: 126x56x126 mm, 126x76x126mm
• Standard: EN60730, IP40
• Wiring: NEC Class 1 (Line Voltage)
• Size and type of Line Voltage terminals: 14, 16, or 18 copper conductors TTW60C, THW75C or THHN90C, 600 volt insulation wire for all
