MDB24M 10Nm Bộ truyền động cho Dampers

Actuators for dampers and sector valves with direct insertion on the damper shaft.
Control signal On/Off or 3 points.
Pair 10 Nm, 90° angular stroke and timing <150 s.
Power supply 85 ÷ 265 Vac, 2 sqm surface area.
Without spring return, IP54.

1 auxiliary microswitch 250 Vac / 5 (2.5) A, 1 x SPDT (Ag)
iSMA CONTROLLI
  • Thông tin sản phẩm
  • Tập tin
MDB24M 10Nm Bộ truyền động cho Dampers

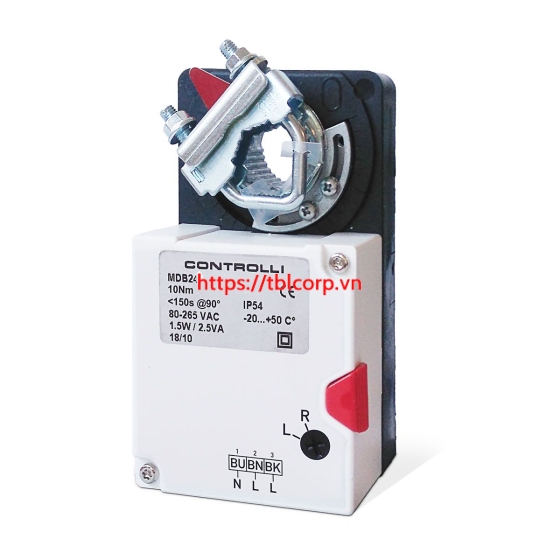

The MDB24M actuator is used in the control of sector valves and dampers acting directly on the damper shaft itself.
Without emergency return function and has a maximum angular stroke of 90°.
It is used for the control of air in building air conditioning and ventilation systems for control dampers up to 2 yoke meters.
Supplied with cable 3 x 0.75 mmq length 1000 mm.

Power supply 85 to 265 V AC
Power consumption Max. [VA] 4,5
Power consumption [W] 2
Torque [Nm] 10
IP 54
Stroke [°] 90
Control signal On/Off, Floating
Options 1 x SPDT(Ag) - 250 Vac / 5 (2,5)A
Application for dampers
Actuators type Motoric
