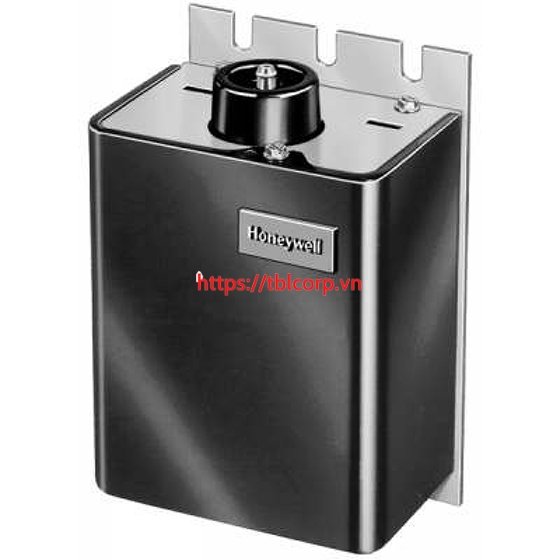

Q624 IGNITION COMPONENTS

Features & Benefits:

• Prevent detection of the ignition spark when properly applied in a flame detection system with the C7027, C7035, or C7044 MiniPeeper Ultraviolet Flame Detector
• For use only in interrupted ignition applications
• Mount in same space used by conventional ignition transformer
• Light weight, 3 lbs. (1.4 kg) versus 8-1/2 lbs. (3.9 kg) for standard transformers
• Temperature Range: -40 to +125°F
• Approximate, Dimensions: 6 3/4 in. high x 4 1/4 in. wide x 3 in. deep (171.5 mm high x 108 mm wide x 76 mm deep)
• Reliable light off with 15,000 peak voltage
• Weight lb. (kg): 3 lb (1.4 kg)
• Ignite gas pilots with spark gaps up to 1/4 in. (6.5 mm)
• Approvals, Underwriters Laboratories Inc.: Component Recognized Approvals, CSA: Certified: File No. LR95329
• Operating Humidity Range (% RH): 95% RH
