FP-4B-W cảm biến nhiệt độ

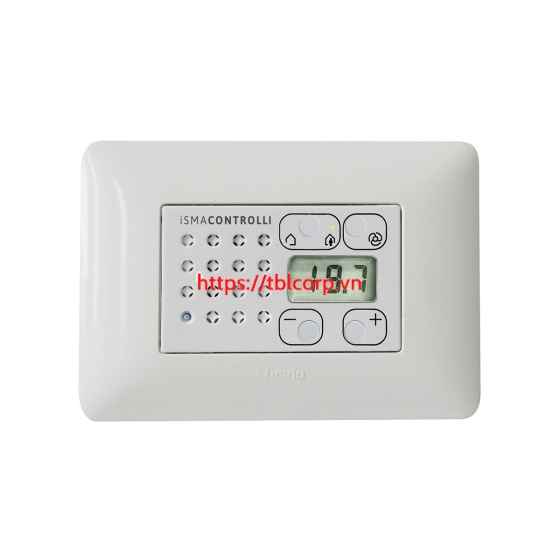

FP is a flush panel with LCD display with four (model FP-4B-x) or two buttons (model FP-2B-x) in black and white version. The panel has the built-in temperature sensor and it has a RS485 port (Modbus RTU). Together with iSMA-B-FCU controller, the panel allows to change the basic parameters such as: temperature setpoint, fan speed, FCU mode and others. FP is powered with 24 V AC/DC.
Measure | Temperature |
---|---|
Application | Room |
Installation | Flush |
Sensing element | NTC 10 kOhm |
T Fluid min [°C] | 0 |
T Fluid max [°C] | 50 |
Power supply | 24 V AC, 24 V DC |
Communication protocol | Modbus RTU |
IP | 20 |
Display | 3-digit LCD display without backlight |
Adjustment | with set point adjustment |
