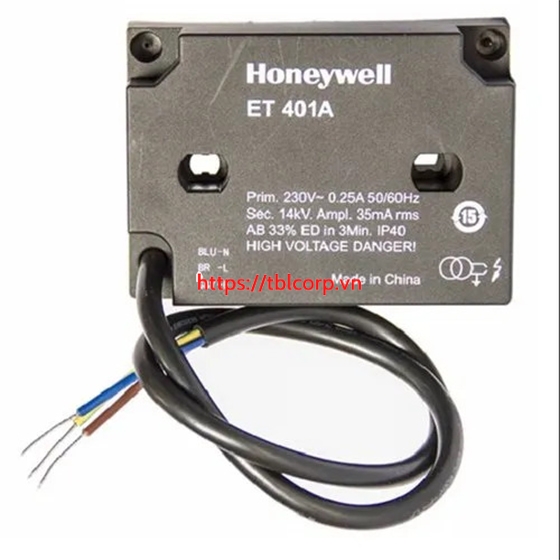

ET401 ET402 IGNITION COMPONENTS

Features & Benefits:

• Ignites interrupted gas pilots with electrode spacings between 0.12 to 0.20 inches (3 and 5 mm)
• ET401A1 has 14.0 kV output peak voltage for a reliable light-off
• Generates the lowest electromagnetic interferences of all known electronic ignition devices; especially important if the burner has to comply with EN 55014-2
• ET401A1 ignition transformer combines low power consumption with a low inrush current
• The dimensions of the housing and mounting holes are such that the ET401A1 can be mounted underneath the burner control box
• Meets UL Standards 1012 and 506. Ambient Temperature Range: 5 to 140°F (-15 to 60°C)
• Approximate, Dimensions: 2 57/64 in. high x 3 15/16 in. wide x 1 41/64 in deep (73.5 mm high x 100 mm wide x 41.5 mm deep)
• Weight lb (kg): 1.2 lb (0.55 kg)
• Approvals, Underwriters Laboratories Inc.: Component Recognized Certificate No. 20180201-E494797
