CR Ống ngắm gắn trên đầu đốt ESA PYRONICS

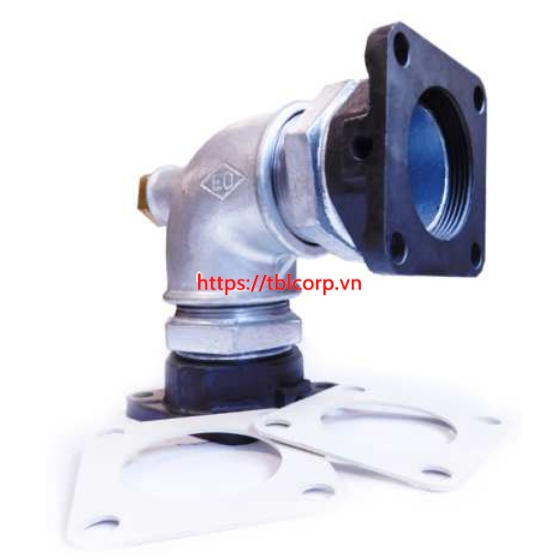

The code CR identifies a series of elbows, which are accompanied by a peepsight and mounted on the ESA PYRONICS burners to allow easy inspection of the flame status inside your refractory block. The choice of peepsights is based on the dimensional values of the connection on the burner, differentiated by characteristics and two conformation sets: one designed for medium-small sizes and one for larger sizes.

8 / 12 / 16 CR

GENERAL:

• Maximum operating temperature: 120 ° C
• Maximum working pressure: 200 mbar
• Compact structure mounted in axis to the burner

MATERIAL COMPOSITION:

• Elbow body and nipples: Fe
• PSLT peepsight body: brass
• Peepsight glass: pyrex
• Connection flange: cast iron
• Gasket *: AFM34 24/32/48 CR
