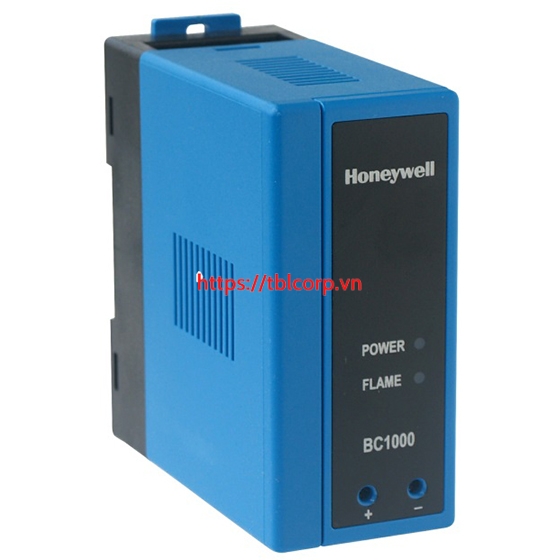

Công tắc ngọn lửa BC1000A0220U Honeywell

In addition to the flame sensing functions, the BC1000A/B provides a “Safe Start” function which checks if a flame signal is present when applying power to the device. If so, the BC1000A/B holds its operation until the flame signal disappears.

Model: BC1000A0220U
Rated voltage: 230V 50/60Hz
Power consumption: 8W
Flame Response time: 2 ± 1 sec.
Flame sensor: C7027/35/44
Safety-start check output: SPST (T3-4)
Flame output: SPST (T2-3)
