Honeywell C7061A C7061F Cảm biến dò ngọn lửa tia cực tím

SPECIFICATIONS:

• IMPORTANT

The specifications in this publication do not include normal manufacturing tolerances. Therefore, this unit may not exactly match the specifications listed. This product is tested and calibrated under closely controlled conditions, and minor differences in performance can be expected if those conditions are changed.

• Models:

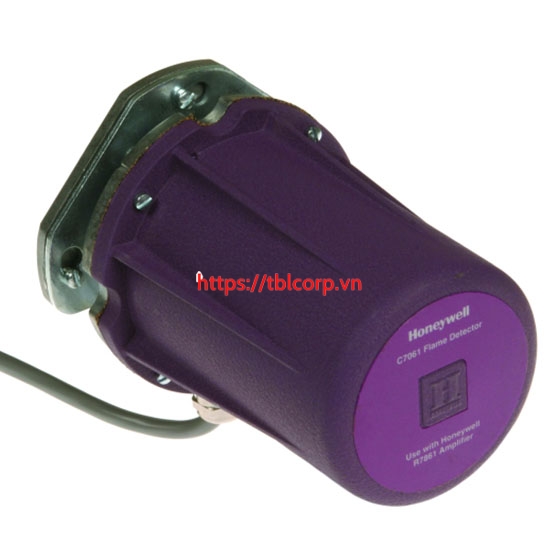

  • C7061A Dynamic Self-Check Ultraviolet Flame Detector.
  • C7061F Dynamic Self-Check Ultraviolet Flame Detector.  (Same as C7061A except with explosion-proof housing for use in hazardous locations).
• Electrical Ratings:
  • Voltage and Frequency:
    • The C7061 is powered from the Flame Safeguard unit that delivers the necessary voltages to operate the tube and shutter.
• Ambient Operating Temperature Ratings
  • (Outside the Case): -40°F to 175°F (-40°C to 80°C) using  part no. 129464N UV Sensing Tube.
  • Storage Temperature Ratings: -60°F to 175°F  (-50°C to 80°C).
• Housing:
  • C7061A: Violet, cast-aluminum cover. Separate mounting flange (with heat block) and faceplate provide heat insulation and sealoff.
  • Meets NEMA 4 enclosure requirements (indoor, outdoor protection; rain-tight, dust-tight, hose-directed water protection).
  • Optional water jacket available; see Accessories.
  • C7061F: Explosion-proof, two-piece, violet, cast aluminum.
• Pressure Rating of Quartz Viewing Window:
  • C7061A: 20 psi (138 kPa), see Replacement Parts.
  • C7061F: 100 psi (690 kPa).
• Pressure Rating of Quartz Focusing Lens: 20 psi (138 kPa), see Accessories (Installed in C7061A1061).
• Mounting:
  • C7061A: Mounting flange with 3/4 NPT internal threads for attaching to sight pipe.
  • C7061A1046,1053: Mounting flange with 1 inch NPT internal threads for attaching to sight pipe.
  • C7061F: Pipe union with 1 inch NPT internal threads for attaching to sight pipe.
• Wiring Connections:
  • Leadwire: NEC Class 1 color coded.
  • Length: 8 ft (2.4m).
• Threaded Leadwire Faceplate Opening:  1/2-14 NPSM internal threads for attaching conduit.
• Connector:
  • C7061A1038 and C7061A1046: Molex
  • Woodhead IR5006A20A120 (formerly Brad Harrison 41310).
• Weight:
  • C7061A: 2.6 lbs. (1.2 kg).
  • C7061F: 14.5 lbs. (6.6 kg).
• Serviceability:
  • C7061A: Field replaceable ultraviolet sensing tube, viewing window, and self-checking coil and shutter assembly.
  • C7061F: Field replaceable self-checking coil and shutter assembly and ultraviolet sensing tube.
• SIL 3 Capable: The C7061A or F when used with a R7861 self-check amplifier in Relay Module EC7810A, 20A, 30A, 40L, 50A; RM7800[E,G,L,M], 30A, 38[A,B,C], 40[E,G,L,M] 50A, 90[A,B,C,D], 97[A,C], 98A is SIL 3 Capable in a properl designed Safety Instrumented System. See form number 65-0312 for Certificate Agreement.
• Approvals:
  • Underwriters Laboratories Inc. Listed: File Number MP268,  Guide Number MCCZZ.
  • Canadian Standards Association Certified: Master File  LR95329-1.
  • Factory Mutual Approved: 14740.01.
  • SwissRe (formerly Industrial Risk Insurers) Acceptable. C7061F: For use in hazardous locations; Class I, Groups C  and D; Class II, Groups E, F, and G; File no. E34649.
• Replacement Parts:
  • All Models:
    • 129464N Ultraviolet Sensing Tube; -40°F (-40°C).
    • 114465 Gasket, silicone rubber; for installing viewing win-dow (three required).
    • 114638 Red Rubber Washer
    • 190971B Coil and Shutter Assembly.
  • C7061A:
    • 114372 Quartz Viewing Window; rated for 20 psi (138 kPa).120739 Gasket, fiber-neoprene; heat insulation and seal-off for mounting flange.
  • C7061F: 122037 Quartz Viewing Window; rated for 100 psi (690 kPa).
