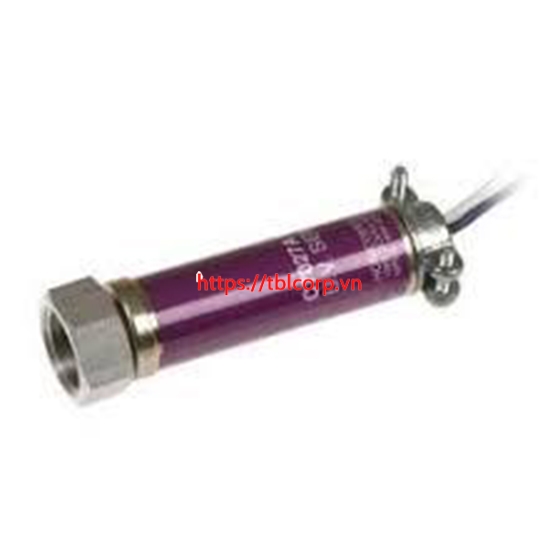

C7027A1023 Đầu báo ngọn lửa cực tím Honeywell

To be Used with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection. The C7027A1023 mounts on a 1/2 in. sighting pipe by using an integral collar and detectors can be wired in parallel for difficult sighting applications. The C7027A1023 seals against pressures up to 5 psi (34.5kPa) when correctly installed due to its compact style, allows for blast tube mounting.

Description: Minipeeper
Type: Ultraviolet, Minipeeper
Lead Length (in.): 96 in.
Lead Length (mm):  2438 mm
Electrical Connections: 2 NEC Class 1 leadwires
Ambient Temperature Range (F): 0 F to 215 F
Ambient Temperature Range (C): -18 C to 102 C
Vibration: 0.5 G max
Mounting: Integral nut for 1/2 in. sighting pipe
Dimensions (in.): 1 1/16 in. diameter x 4 in. long
Dimensions (mm): 27 mm diameter x 102 mm long
Applications: coal fired burners, gas fired burners, oil fired burners
Comments: Detects ultraviolet radiation in flames
Used With Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
